ÇANAKKALE ÇAN FLUIDIZED BED THERMAL POWER PLANT 320 MW

teknotes-can-termik-santrali

This project is included in the investment program in 1996 in order to use the 70,000,000 tons highsulphur lignite coal reserve located 1996 near Can for power generation purposes and to meet the ever-increasing domestic demand for energy.















CHARACTERISTICS OF PLANT

STEAM GENERATOR

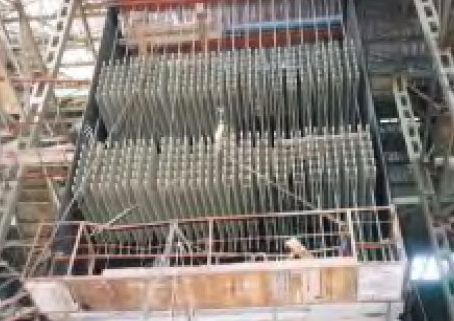

can-buhar-kazanı


Manufacturer:     ALSTOM POWER
Type:                 Circulating Fluidized Bed
Efficiency:          92%
Steam Capacity: 462 t/h

STEAM TURBINE

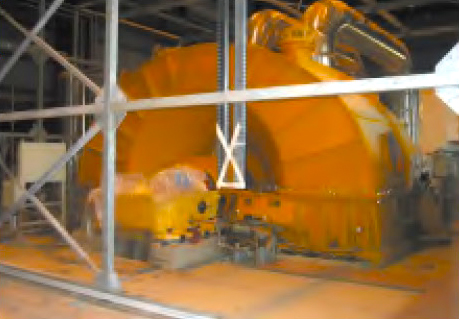

can-buhar-turbini

Manufacturer:    ALSTOM POWER
Type Combined: HP/IP + Single Flow LP
Power:              160MW
RPM:                 3000


Condenser Pressure 0.085 bar abs.













GENERATOR

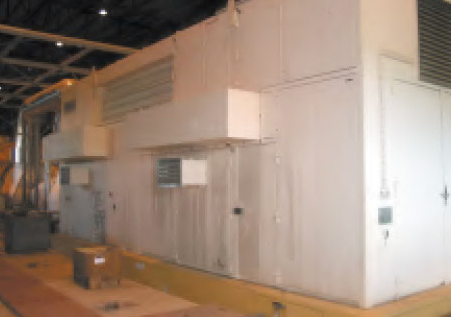

jenerator

Manufacturer:         ALSTOM POWER
Type:                     Synchronous
Power:                   177MVA
Voltage:                 15kV
Short Circuit Ratio: 0.54
Power Factor:         0.90



BOILER PROCESS SCHEME

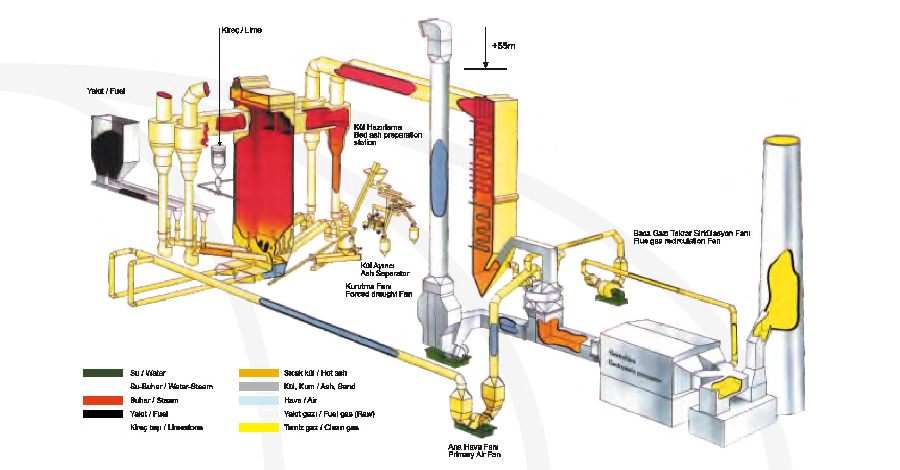

 can-termik-akis-semasi



SCOPE OF TEKNOTES

Projeci Managementfor its part
Construction Management
Basic and Detail Engineering
Procurement
Manufacturing of Steel Structure
Manufacturing of Ducting System
Commissioning

 AII civil construclion activities
Excavation and backfilling fora total of 2.500.000 cubic meters Substructure and superstructure works fora total of 70.000 cubic meters concrete foundations
Asphalt pavement access roads fora total of 2500 cubic meters lnternal concrete road and pavementfor atotal of 37.000 sq. meters Reinforced Concrete bridge lenghtfor atotal of 50 meters
4 pieces of limestone silos, each capacity 6000 cubic meters (sliding forework system, silo diameter 14 meters, height 36 meters)
Ash disposal area 200.000 cubic meters filing embankment 8 pieces logistics bulding (non-technical buildings)
9000 sq. meters total closed area of buildings
6000 meters service road and open drainage channel
500 meters bored piles diameter 80 centimeters, lenght 12 meters
2 pieces chimney (corten steel) diameter 4,5 meters, height50 meters AII architectural works
Furnishings ofthe buildings

AII Mechanical Erection Works lora total of 42.000 !ons including
Boilers with all accessories Electrostatic precipitars
Turbine And Generator sets with all accessories Rotating machines
Fabricating Equipments
Coal , Ash and Lime Handling Systems Storage Tanks
WaterTreatmentPlants Handling Equipments FOSystems
LP, MP, HP lndoor and Outdoor Piping Fire Fighting and Extinguishing System
Gas Production plants, compressed air plants, auxiliary boiler packages, workshop and laboratories equipments
and other miscellaneous equipments. Steel Structure
HVAC
Refractories
Heat and sound lnsulation Cladding
Painting

AII Electrical Works including
Complete MW/LWSwitchgear System 21 pieces MW/LWTransformers
86.000 meters Cable Tray
700.000 meters Cabling
All lnstrumentation and Control Works Pre-Commissioning
Participating in commissioning and start-up

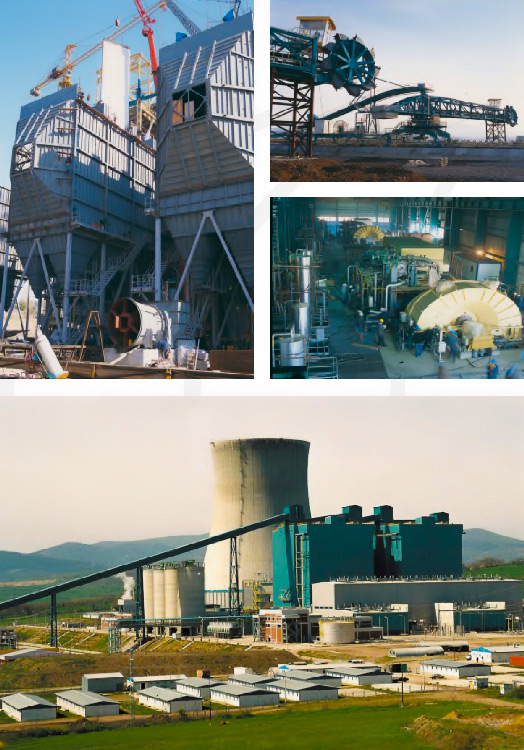

canakkale-can-termik-santrali7
